DIY Waterproof Relay/Fuse Center
Product Details
Want to do your own wiring and need a relay fuse center for your project? Here it is. The HWB60 can be flush mounted through a panel or firewall so the wires are not visible. Optional bracket allow for surface mounting.

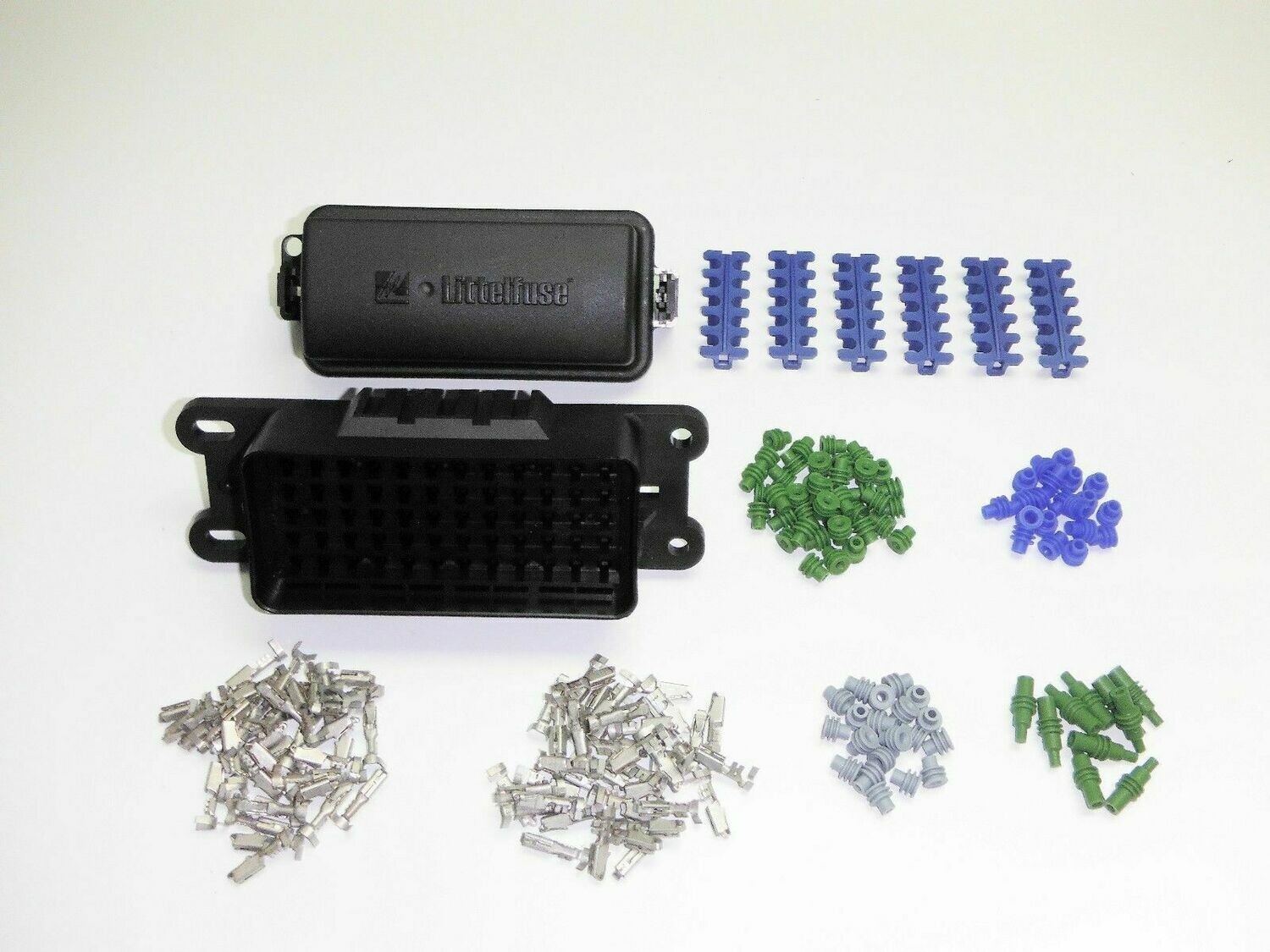

Kit comes complete with terminals, seals and TPA's
Comes with the following:
The base and cover
Cover gasket
(6) TPA's
(40) 12-14 ga. terminals
(40) 16-18 ga. terminals
(40) 16-18 ga. wire seals
(20) 14 ga. wire seals
(20) 12 ga. wire seals
(10) Hole plugs
You will need to purchase the fuses and relays for the system you are designing.
Accepts any combination of MINI® fuses, relays, circuit breakers, diodes, etc.
Compact sealed unit: box is 4.6 x 2.0 x 3.2” (113 x 52 x 82mm)
The HWB60 is a hard-wired module for use with 280 style components (i.e. mini-fuses, relays, diodes, resistors, etc.) and features 60 cavities creating a high density fuse module with a compact footprint. Without internal bussing, it allows the flexibility of custom circuitry by the end user. Wires simply plug into the back of the module using sealed Delphi Metri-Pack Series 280 tanged terminals.
Features and Benefits:
The elimination of internal bussing allows user to customize their own circuitry, with direct wire-to-component connections.
User can install any MINI (280 style) circuit protection component.
Compact size allows the perfect fit for accessory circuits, overflow circuits from main PDM, or a main module on smaller vehicles.
IP67 sealed units can be installed virtually anywhere on the vehicle and stand up to roadsplash and salt spray.
TPAs (terminal position assurance locks) give secondary locking protection of the wire leads, which aid in prevention of leads from being pulled out. TPAs snap onto the back of the HWB60 after wires are installed, and do not interfere with the cable seals needed to ensure IP protection.
Multiple HWB60s can be dovetailed together to expand circuit protection capacity. They can also be interlocked to other Littelfuse PDMs and fuseholders
(i.e. FLEC, MEGA Flex holder, MIDI Flex holder, etc.) for complete system protection.
