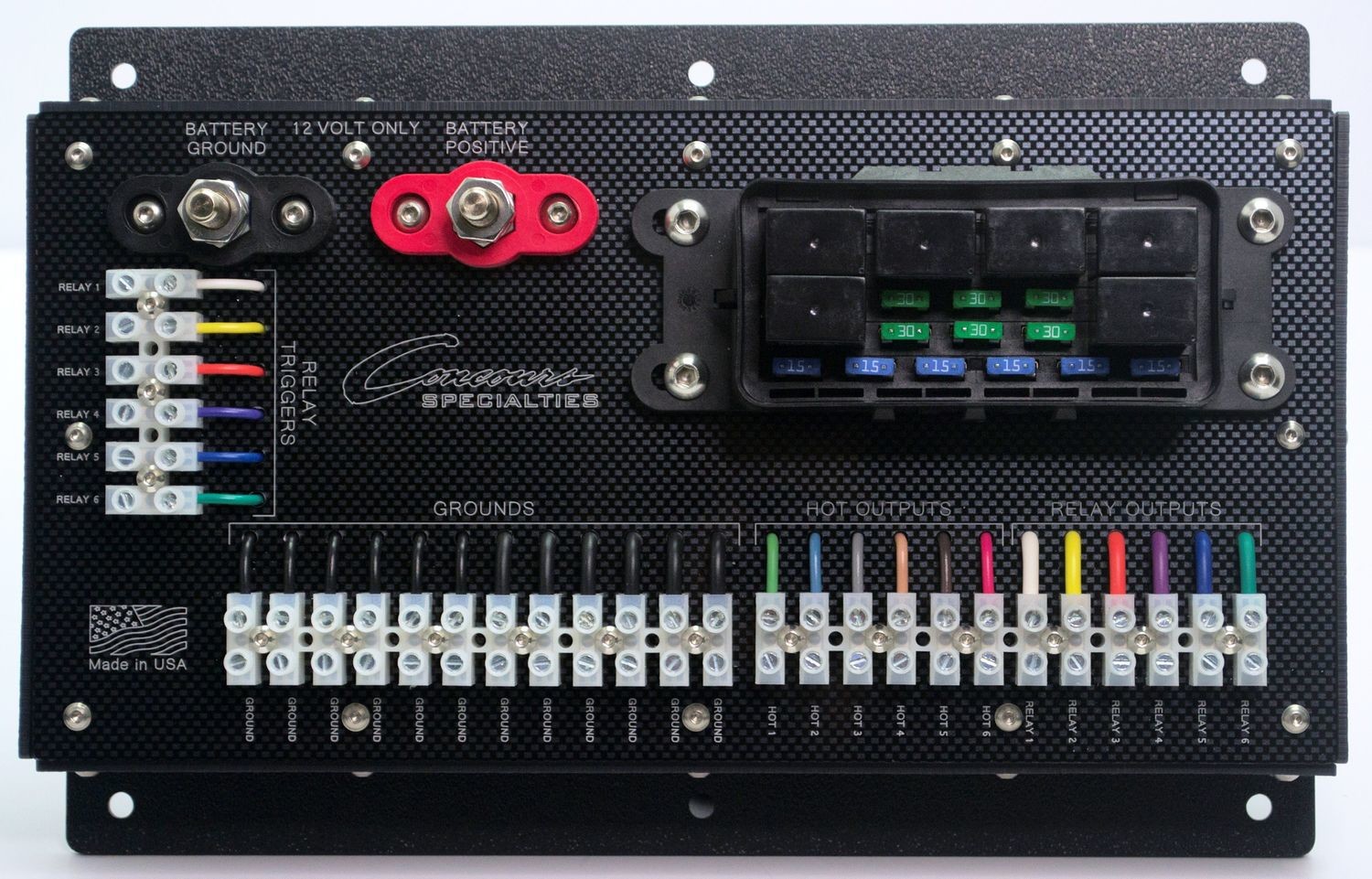

Run all of your accessories to one central location. Power and ground handled in one convenient location.
Waterproof relay/fuse center mounted to a custom enclosure. Extremely clean and finished look. European terminal strips on all wired connections. All terminals and battery connections use corrosion resistant materials for a long life even in the harshest conditions.
Handles up to 270 amps.
12 circuits total.
30 amps per relay circuit. (6)
15 amps per hot circuit. (6)
Run all of your accessories to one central point. Each circuit is labeled on the front panel so it takes the guesswork out of the connections.
Standard carbon fiber finish with white labeling. Custom colors are no problem
Enclosure is made from tough 1/8" textured ABS. Stainless mounting screws are used for longevity. Front panel is gloss carbon fiber pattern on ABS.
Includes what you see in the pictures. You will need to supply all of the wiring up to the panel. The panel is pre-wired to the terminal strips.
- 6 fused relay circuits wired with 12 gauge
- 6 fused hot circuits wired with 16 gauge
- 6 - 12 gauge grounds
- 6 - 16 gauge grounds
- 6 - 18 gauge relay trigger inputs
- Relays are positive trigger (can easily be made negative)
- Heavy duty power and ground post (5/16" stud)
- Waterproof fuse/relay box
- Stainless steel hardware
- All terminals are corrosion resistant
- Front panel can be removed from base for custom mounting
- Panel 12" X 6"
- Base 12" X 8" X 1.75"
- Overall height with fuse cover on 12" X 8" X 4-3/8"
- Built to order - please allow a few extra days for production
