Universal Waterproof Fuse/Relay Box
Product Details

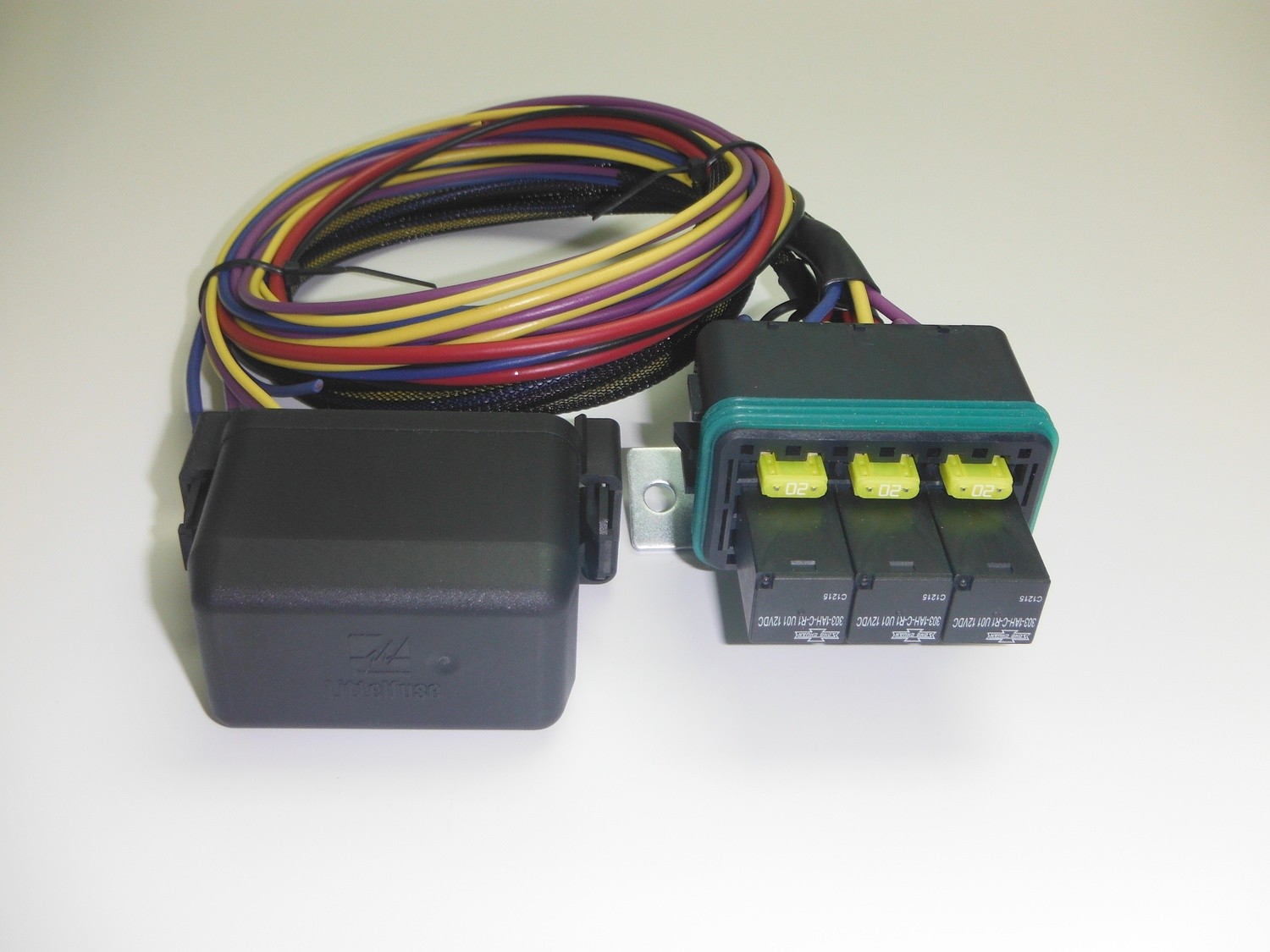

Complete Waterproof Relay/Fuse Block - Fully loaded and wired
Approximately 3 feet on each wire
Wires are grouped together - power, relay trigger and relay output
Comes with the following:
(3) 20 amp relays
(3) 20 amp fuses
The base and cover
Cover gasket
Mounting bracket (30 degree angle)
14 gauge relay output wires
18 gauge relay trigger and ground wires
12 gauge power
Instructions
Compact sealed unit: box is 3.2 x 1.5 x 2.9” (80 x 38 x 74mm)
Features and Benefits
The elimination of internal bussing allows user direct wire-to-component connections.
IP67 sealed units can be installed virtually anywhere on the vehicle and stand up to roadsplash and salt spray.
TPAs (terminal position assurance locks) give secondary locking protection of the wire leads, which aid in prevention of leads from being pulled out. TPAs snap onto the back after wires are installed, and do not interfere with the cable seals needed to ensure IP protection.
