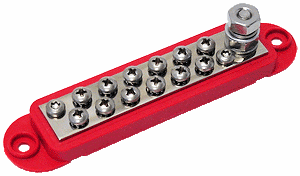

12 Point Ground Distribution Block
PDB12-B
$13.00
Out of stock
1
Product Details
- 12 connection points, #8-32 stainless steel screws
- Includes terminal cover and boot
- Amperage:
- Max continuous: 180 amps @ 12 vdc - 15 amps per connection
- Max intermittent: 20 amps per connection (less than 1 minute)
- Max voltage: 48vdc
- 1/4" stainless steel terminal post
- Stainless steel hex nuts and lock washer
- Base Material: Glass-Filled Nylon
- Mounting screws: #10 (not included)
- Mounting center: 4.66 in
- 5.234" X 1.14" X 1.095" (L x W x H)
Save this product for later
